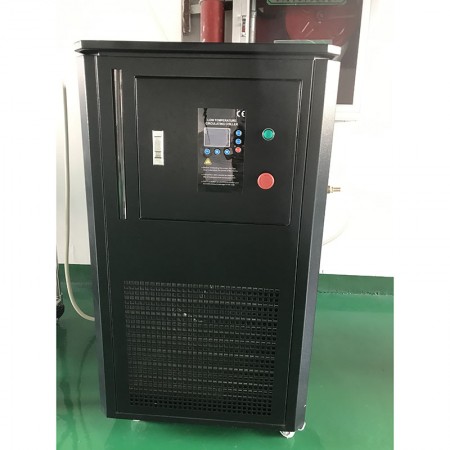

English Low temperature circulating chiller
Product Code:
BB-F80
5L
| No-load Min.Temperature | －20℃ | -25 | －40℃ | －80℃ | ||
| Internal and external circulation | Closed circulation system | |||||
| Performance Parameter | Temperature setting range | ±50℃ | ±99.9℃ | |||
| Temperature control accuracy | ±1℃ | |||||
| Cooling capacity(W) | 1248—319 | 1314—447 | 1420—462 | 1938—200 | ||
| Circulating Performance | FLow:Q=35L/min, Lift:4—6m | |||||
| Control Function | Temperature control type | Electronic temperature controller | ||||
| Temperature setting way | Digital Settings for keys, LED Digital display (smallest unit:0.1℃) | |||||
| Safety Function | Self-diagnosis function, overload protection, compressor pressure gauge, overload relay, emergency stop switch device | |||||
| Main mechanism performance | Rrefrigerating unit | R22、R404、F23 | ||||
| Circulating pump | 30W、220V ±10% 50Hz | |||||
| Temperature sensor graduation | Pt100、±50℃ | |||||
| Operating Conditions |
The environment temperature | 10－30℃ | ||||
| Relative humidity | 60－80% | |||||
| Voltage | 220V ±10% 50Hz | |||||
| Dimensions | The valve diameter | Φ8.5mm | ||||
| Diameter of Cooling Tank | Φ200×196 Φ200×200 1Crl8Ni9Ti | |||||
| Machine Size（cm） | 520×350×720 | 430×350×960 | ||||
| Fittings | Insulating Pipe | 32kg | 40kg | 60kg | ||
| Inlet/outlet Valve | 2×1500mm | |||||
| operating manual | 2sets | |||||
| No-load Min.Temperature | 1set | |||||
10L
| No-load Min.Temperature | －20℃ | -25 | －30℃ | －40℃ | －80℃ | ||
| Internal and external circulation | Closed circulation system | ||||||
| Performance Parameter | Temperature setting range | ±50℃ | ±99℃ | ||||
| Temperature control accuracy | ±1℃ | ||||||
| Cooling capacity(W) | 2100—780 | 2170—780 | 2436—820 | 2548—980 | 2900—230 | ||
| Circulating Performance | FLow:Q=35L/min, Lift:4—6m | ||||||
| Control Function | Temperature control type | Electronic temperature controller | |||||
| Temperature setting way | Digital Settings for keys, LED Digital display (smallest unit:0.1℃) | ||||||
| Safety Function | Self-diagnosis function, overload protection, compressor pressure gauge, overload relay, emergency stop switch device | ||||||
| Main mechanism performance | Rrefrigerating unit | R22、R404、F23 | |||||
| Circulating pump | 60W、220V ±10% 50Hz | ||||||
| Temperature sensor graduation | Pt100、±50℃ | ||||||
| Operating Conditions |
The environment temperature | 10－30℃ | |||||
| Relative humidity | 60－80% | ||||||
| Voltage | 220V ±10% 50Hz | ||||||
| Dimensions | The valve diameter | Φ8.5mm | |||||
| Diameter of Cooling Tank | Φ250×250 1Crl8Ni9Ti | ||||||
| Machine Size（cm） | 580×450×730 | 720×650×900 | |||||
| Fittings | Insulating Pipe | 65kg | 85kg | ||||
| Inlet/outlet Valve | 2×1500mm | ||||||
| operating manual | 2sets | ||||||
| No-load Min.Temperature | 1set | ||||||
20L
| No-load Min.Temperature | -20 | －30℃ | －40℃ | －80℃ | |
| Internal and external circulation | Closed circulation system | ||||
| Performance Parameter | Temperature setting range | ±199.9℃ | |||
| Temperature control accuracy | ±1℃ | ||||
| Cooling capacity(W) | 3126—950 | 3237—1023 | 3635—980 | 4530—360 | |
| Circulating Performance | FLow:Q=35L/min, Lift:4—6m | ||||
| Control Function | Temperature control type | Electronic temperature controller | |||
| Temperature setting way | Digital Settings for keys, LED Digital display (smallest unit:0.1℃) | ||||
| Safety Function | Self-diagnosis function, overload protection, compressor pressure gauge, overload relay, emergency stop switch device | ||||
| Main mechanism performance | Rrefrigerating unit | R22、R404、F23 | |||
| Circulating pump | 60W、220V ±10% 50Hz | ||||
| Temperature sensor graduation | Pt100、±50℃ | ||||
| Operating Conditions |
The environment temperature | 10－30℃ | |||
| Relative humidity | 60－80% | ||||
| Voltage | 380V ±10% 50Hz | ||||
| Dimensions | The valve diameter | Φ内12mm | |||
| Diameter of Cooling Tank | Φ300×300 1Crl8Ni9Ti | ||||
| Machine Size（cm） | 630×520×1000 | 940×710×1010 | |||
| Fittings | Insulating Pipe | 75 | 150 | ||
| Inlet/outlet Valve | 2×1500mm | ||||
| operating manual | 1set | ||||
30L
| No-load Min.Temperature | -30℃ | -40℃ | -80℃ | -120℃ | |
| Internal and external circulation | Closed circulation system | ||||
| Performance Parameter | Temperature setting range | ±50℃ | ±199℃ | ||
| Temperature control accuracy | ±1℃ | ||||
| Cooling capacity(W) | 5800 | 2200 | 2180 | 2000 | |
| Circulating Performance | FLow:Q=35L/min, Lift:4—6m | ||||
| Control Function | Temperature control type | Electronic temperature controller | |||
| Temperature setting way | Digital Settings for keys, LED Digital display (smallest unit:0.1℃) | ||||
| Safety Function | Self-diagnosis function, overload protection, compressor pressure gauge, overload relay, emergency stop switch device | ||||
| Main mechanism performance | Rrefrigerating unit | R22 R404 F23 F14 | |||
| Circulating pump | 120W,220V±10%,50HZ | ||||
| Temperature sensor graduation | Pt100 | ||||
| Operating Conditions |
The environment temperature | 10-30℃ | |||
| Relative humidity | 60-80% R.H | ||||
| Voltage | 380V±10% 50HZ | ||||
| Dimensions | The valve diameter | Φ13.5mm | |||
| Diameter of Cooling Tank | Φ290 | ||||
| Machine Size（cm） | 630×520×1000 | 940×710×1010 | 1030×810×1020 | ||
| Fittings | Insulating Pipe | 2×1500mm | |||
| Inlet/outlet Valve | 1set | ||||
40L
| No-load Min.Temperature | -30℃ | -40℃ | -80℃ | -120℃ | ||
| Internal and external circulation | Closed circulation system | |||||
| Performance Parameter | Temperature setting range | ±50℃ | ±99℃ | ±200℃ | ||
| Temperature control accuracy | ±1℃ | ±2℃ | ||||
| Cooling capacity(W) | 4390-1300 | 4510—1320 | 4830—510 | 5120—450 | ||
| Circulating Performance | FLow:Q=70L/min, Lift:6—8m | |||||
| Control Function | Temperature control type | Electronic temperature controller | ||||
| Temperature setting way | Digital Settings for keys, LED Digital display (smallest unit:0.1℃) | |||||
| Safety Function | Self-diagnosis function, overload protection, compressor pressure gauge, overload relay, emergency stop switch device | |||||
| Main mechanism performance | Rrefrigerating unit | R22 R404 F23 F14 | ||||
| Circulating pump | 55W,220V±10%,50HZ | |||||
| Temperature sensor graduation | Pt100 | |||||
| Operating Conditions |
The environment temperature | 10-30℃ | ||||
| Relative humidity | 60-80% R.H | |||||
| Voltage | 380V±10% 50HZ | |||||
| Dimensions | The valve diameter | Φ12mm | ||||
| Diameter of Cooling Tank | Φ290 | |||||
| Machine Size（cm） | 76×61×103 | 103×86×103 | 113×86×112 | |||
| Fittings | Insulating Pipe | 2×1500mm | ||||
| Inlet/outlet Valve | 1set | |||||
50L
| No-load Min.Temperature | -30℃ | -40℃ | -80℃ | -120℃ | ||
| Internal and external circulation | Closed circulation system | |||||
| Performance Parameter | Temperature setting range | ±50℃ | ±99℃ | ±200℃ | ||
| Temperature control accuracy | ±1℃ | ±2℃ | ||||
| Cooling capacity(W) | 8930—2280 | 10256—2300 | 11200—1480 | 11290—1260 | ||
| Circulating Performance | FLow:Q=70L/min, Lift:6—8m | |||||
| Control Function | Temperature control type | Electronic temperature controller | ||||
| Temperature setting way | Digital Settings for keys, LED Digital display (smallest unit:0.1℃) | |||||
| Safety Function | Self-diagnosis function, overload protection, compressor pressure gauge, overload relay, emergency stop switch device | |||||
| Main mechanism performance | Rrefrigerating unit | R22 R404 F23 F14 | ||||
| Circulating pump | 55W,220V±10%,50HZ | |||||
| Temperature sensor graduation | Pt100 | |||||
| Operating Conditions |
The environment temperature | 10-30℃ | ||||
| Relative humidity | 60-80% R.H | |||||
| Voltage | 380V±10% 50HZ | |||||
| Dimensions | The valve diameter | Φ12mm | ||||
| Diameter of Cooling Tank | Φ290 | |||||
| Machine Size（cm） | 76×61×103 | 103×86×103 | 113×86×112 | |||
| Fittings | Insulating Pipe | 2×1500mm | ||||
| Inlet/outlet Valve | 1set | |||||
80L
| No-load Min.Temperature | -30℃ | -40℃ | -80℃ | -120℃ | ||
| Internal and external circulation | Closed circulation system | |||||
| Performance Parameter | Temperature setting range | ±50℃ | ±99℃ | ±200℃ | ||
| Temperature control accuracy | ±1℃ | ±2℃ | ||||
| Cooling capacity(W) | 9820—2820 | 10860—2830 | 11670—1800 | 11880—1200 | ||
| Circulating Performance | FLow:Q=70L/min, Lift:6—8m | |||||
| Control Function | Temperature control type | Electronic temperature controller | ||||
| Temperature setting way | Digital Settings for keys, LED Digital display (smallest unit:0.1℃) | |||||
| Safety Function | Self-diagnosis function, overload protection, compressor pressure gauge, overload relay, emergency stop switch device | |||||
| Main mechanism performance | Rrefrigerating unit | R22 R404 F23 F14 | ||||
| Circulating pump | 55W,220V±10%,50HZ | |||||
| Temperature sensor graduation | Pt100 | |||||
| Operating Conditions |
The environment temperature | 10-30℃ | ||||
| Relative humidity | 60-80% R.H | |||||
| Voltage | 380V±10% 50HZ | |||||
| Dimensions | The valve diameter | Φ16mm | ||||
| Diameter of Cooling Tank | Φ300 | |||||
| Machine Size（cm） | 1000×800×1100 | 1200×1100×1350 | 1460×1200×1350 | |||
| Fittings | Insulating Pipe | 2×1500mm | ||||
| Inlet/outlet Valve | 1set | |||||
100L
| No-load Min.Temperature | -30℃ | -40℃ | -80℃ | -120℃ | ||
| Internal and external circulation | Closed circulation system | |||||
| Performance Parameter | Temperature setting range | ±50℃ | ±99℃ | ±200℃ | ||
| Temperature control accuracy | ±1℃ | ±2℃ | ||||
| Cooling capacity(W) | 11380—3012 | 11520—3160 | 12630—2160 | 13760—1350 | ||
| Circulating Performance | FLow:Q=70L/min Lift:6—8m | |||||
| Control Function | Temperature control type | Electronic temperature controller | ||||
| Temperature setting way | Digital Settings for keys, LED Digital display( smallest unit:0.1℃) | |||||
| Safety Function | Self-diagnosis function, overload protection, compressor pressure gauge, overload relay, emergency stop switch device | |||||
| Main mechanism performance | Rrefrigerating unit | Semi-enclosed compressor,R22 R404 F23 F14 | ||||
| Circulating pump | Power 750W, 220V±10%, 50HZ | |||||
| Temperature sensor graduation | Pt100 platinum resistor | |||||
| Operating Conditions |
The environment temperature | 10-30℃ | ||||
| Relative humidity | 60-80% R.H | |||||
| Voltage | 220/380V±10% 50HZ | |||||
| Dimensions | The valve diameter | DN15(4’’, G1/2) | ||||
| Diameter of Cooling Tank | Φ320mm | |||||
| Machine Size（cm） | 100×80×110 | 120×110×135 | 146×120×135 | |||
| Fittings | Insulating Pipe | 2×1500mm | ||||
| Inlet/outlet Valve | 1 set | |||||
| operating manual | 1set | |||||
