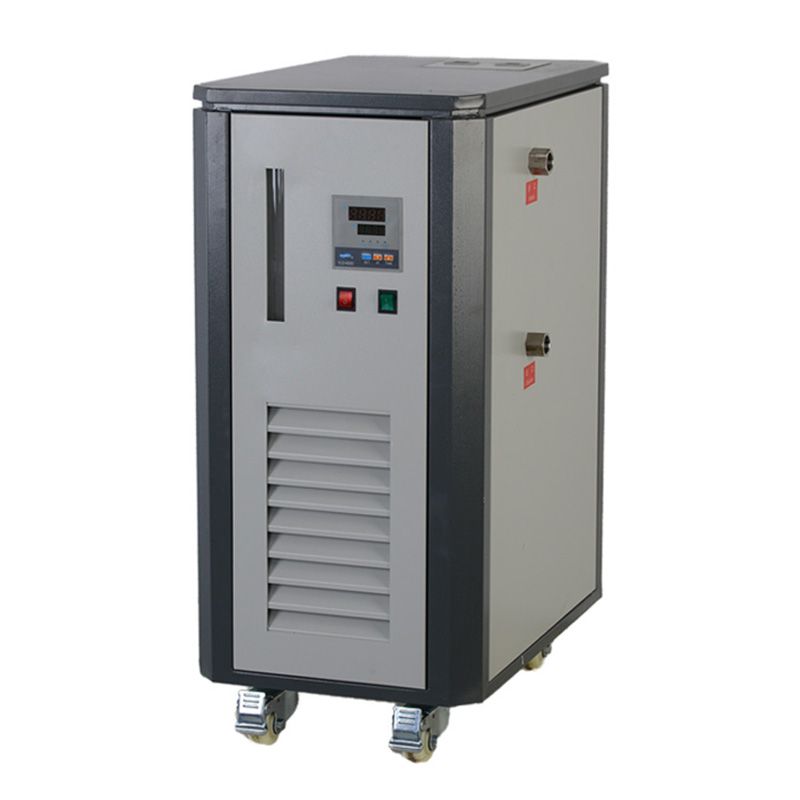

English Oil bath pot
Product Code:
BB-F645
| Model | HOB-50L | |
| Heating power | 5KW | |
| Function | Inner recycle | Water bath, oil bath |
| Outer recycle | Provide heat source for external equipment | |
| Circulating pump capacity | Power | 100W |
| Flow | 25L/min | |
| Pump head | 4-6m | |
| Temperature control system | thermometer sonde | PT100 |
| Temperature control type | PID intelligent temperature control, LCD large digital display | |
| Temperature setting range | PT100：0～400.0℃ | |
| Temperature measurement range | PT100：-59.0～409.0℃ | |
| Range of temperature | Water bath: RT-99℃ Oil batch: RT-200℃ | |
| The temperature control accuracy | ±1℃ | |
| Working condition | Voltage | 220V/50Hz |
| Power | 5.1KW | |
| Environment temperature | -10～60℃ | |
| Relative humidity | < 90%RH（非凝露） | |
| Environmental stress | 86kPa-106kPa | |
| Circulation medium | Water | Deionized water or distilled water |
| Conduction oil | Viscosity not less than 100cSt | |
| Dimension | Heating trough | Diameter400* height400mm |
| Inlet and outlet valve | DN20 | |
| Equipment dimension | 600*490*820mm | |
